Modern industries demand reliable, continuous operation for efficient solid-liquid separation. One of the most trusted systems for this purpose utilizes centrifugal force to achieve effective dewatering and washing of materials such as polyethylene, cotton seed delinting, and crystalline products. With optimized throughput, these systems are designed to handle demanding industrial tasks with minimal particle breakage and maximum performance.

These machines operate by introducing a suspension feed into a high-speed constant speed rotor. As the slurry accelerates, it enters the first basket stage, where approximately 80% of the moisture is extracted during main filtration. From there, the mixture advances to subsequent processes, including intermediate washing with carefully dosed wash materials and extraction of wash filtrate and main filtrate. These steps remove impurities from the solid cake and ensure high purity in the finished product.

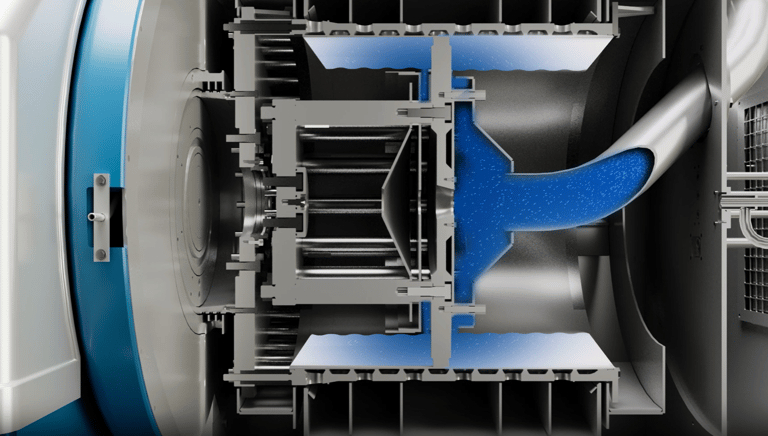

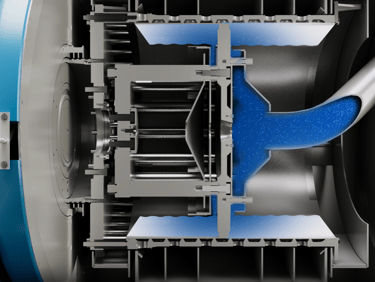

What Is a Pusher Centrifuge and How Does It Work?

A pusher centrifuge is a type of industrial centrifuge designed for continuous solid-liquid separation. It operates through a rotating drum that forces a suspension against a screen. Using high centrifugal force, solids are retained and moved outward, while the liquid, including mother liquor, passes through.

Separation efficiency is maximized by a sequence of operations that begin with feeding the slurry, accelerating it in the rotor, and distributing it across the basket. The solid phase forms a cake that is pushed step-by-step through the machine. Each stage, including washing step and final discharge, is optimized to support high throughput and low product loss.

Pusher Movement and Cake Handling

A key factor in these systems is the movement of the pusher plate. This mechanism gently moves the cake through different parts of the centrifuge, from the first basket stage to the second basket, without damaging the structure of delicate materials. The pusher movement ensures consistent advancement of the solids, helping avoid breakage or abrasion.

Depending on the model, the pusher may be powered by hydraulic oil or a mechanical piston system. These options allow operators to control force and speed, maximizing throughput and enabling precise material handling even for fragile or fibrous solids.

Pusher Centrifuge Parts and Configuration

Whether used in smaller units or larger units, the design of these systems allows for full customization. Standard configurations can be upgraded with explosion protection configurations or gas-tight systems, which are especially important in the chemical and mineral industries where flammable or toxic materials may be processed.

Additional features such as nozzles allow targeted injection of wash liquid at defined process steps, ensuring efficient removal of mother liquor during the washing step. As the cake progresses, liquid extracts like wash filtrate and main filtrate are separated and collected, further improving yield and reducing waste.

These components are built for long-lasting performance, with wear-resistant internals and easy maintenance access. The inclusion of pushers, pusher plates, and screening elements ensures high operational reliability, even under continuous load.

Gentle Product Acceleration Avoids Particle Breakage

The design of the centrifuge prioritizes careful handling of materials from feed to final step. The initial acceleration of the suspension feed is carefully controlled to avoid abrupt forces that might cause particle breakage or structural deformation. This is especially valuable in processing of sensitive substances such as crystalline products or specialty chemicals.

Through precise tuning of the pusher movement, the cake is displaced without compacting it too tightly or causing chipping, especially during the transition from the first basket to the second basket. This controlled handling preserves the product quality and minimizes dust formation, which is vital for high-purity applications.

Versatility Across Industries and Applications

The system’s ease of modification makes it ideal for a variety of applications, from food processing and plastics to mineral and chemical production. It is particularly suited to processes requiring low moisture content, efficient recovery of solids, and precision in solid-liquid separation.

Its ability to handle a wide range of materials—from coarse granules to fibrous pulp—combined with safety features and customizable configuration, makes it a robust and future-proof investment. Advanced designs also offer compatibility with smart control systems for real-time monitoring and automated adjustments.

Discharge and Final Product Handling

At the final step of the cycle, the cake is transferred out of the system through a dedicated discharge mechanism. By this stage, the solid has undergone multiple stages of washing, filtration, and dewatering, resulting in a consistent, clean finished product. Whether using gravity-based or mechanical discharge, the system maintains operational continuity without manual intervention.

The final product is typically free from excess impurities and moisture, meeting strict industrial standards. With minimal downtime and low operating cost, this technology offers reliable results in batch or continuous production environments.

Conclusion

From efficient suspension handling to low particle breakage, the pusher-style centrifuge system exemplifies engineering excellence in solid-liquid separation. With support for explosion protection, gas-tight configurations, and modular parts like nozzles, pushers, and pusher plates, it offers unmatched performance, especially for industries requiring consistent and high-purity output.

Whether integrated in smaller units for specialty chemicals or scaled up to larger units for bulk production, this technology delivers superior results through its optimized design, robust construction, and continuous operating capability.
